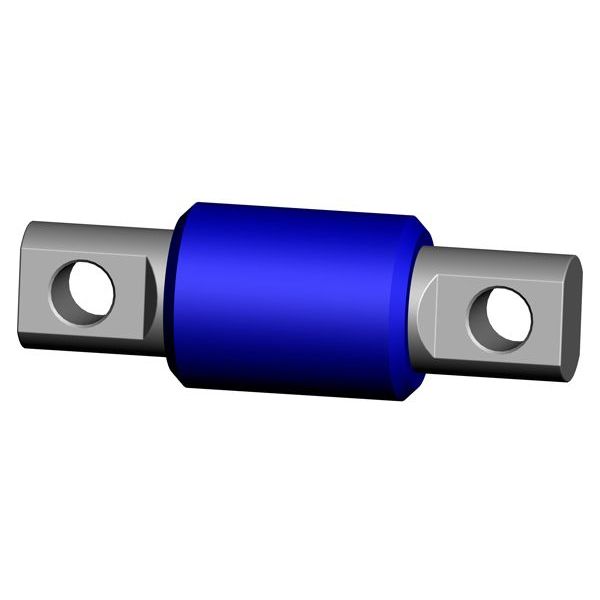

#PL1146 Torque Rod Bushing Part Dimensions- 4 3/8" Bolt Hole C-COutside Diameter -1.91" Bolt Holes: 11/16" Bolt: 5/8"Does NOT Rotate

Torque Rod Bushing

• Warranty: U.S./Canada 3-Year; Export 1-Year

Fitment & Features

Polyurethane torque rod bushing with a non-rotating pin. ATRO lists two bushings per rod and PT00-52000 as the installation tool. ATRO identifies TS50-22691 as its preferred bushing alternative.

• Freightliner: FH36-40 with 3-inch spring, four-spring suspension, and FAS II Airliner
• Hendrickson: E4 340–400, HFS 360–460, HAS 360–460, and HA 180–460 series
• Mack: Hendrickson AL-40

OEM Cross-Reference Numbers

• Autocar: 47691000L-HR; 47691-000L
• Freightliner: A16-119448; HDR 47691 000L
• Hendrickson: 47691000; 47691; 47691-000L
• International: H47691000L; HUD47691000L; HD47691000L
• Mack: 4000-47691000L; 85107110; 47691

Technical Documents

(Click Here) Freightliner FAS II Suspension Schematic (PDF)

(Click Here) Hendrickson Primaax EX Suspension Schematic (PDF)

(Click Here) International Z-Beam Suspension Schematic (PDF)

(Click Here) Mack AL40 Suspension Schematic (PDF)
