Trux (20" Drop) LED Rear Center Panel 4" & 3/4" LEDs 304 Stainless Steel (choose color)
SKU TU-9023L
Original price
€481,95 EUR
-
Original price
€845,95 EUR
Original price
€727,95 EUR
€481,95 EUR
-
€845,95 EUR
Current price
€727,95 EUR
Availability:
(Pre-Order)
Availability:
(Pre-Order)
Availability:
(Pre-Order)
Availability:
(Pre-Order)
Availability:
(Pre-Order)
Availability:
(Pre-Order)
Availability:
(Pre-Order)
Availability:
in stock
- Pre-Wired & Assembled for quick and easy installation
- Includes LED Lighting, Grommets & Light Bezels
- 304 Stainless Steel
- Composite Back Plate Included
- DOT Compliant
- Sold as a Kit
Technical Specifications

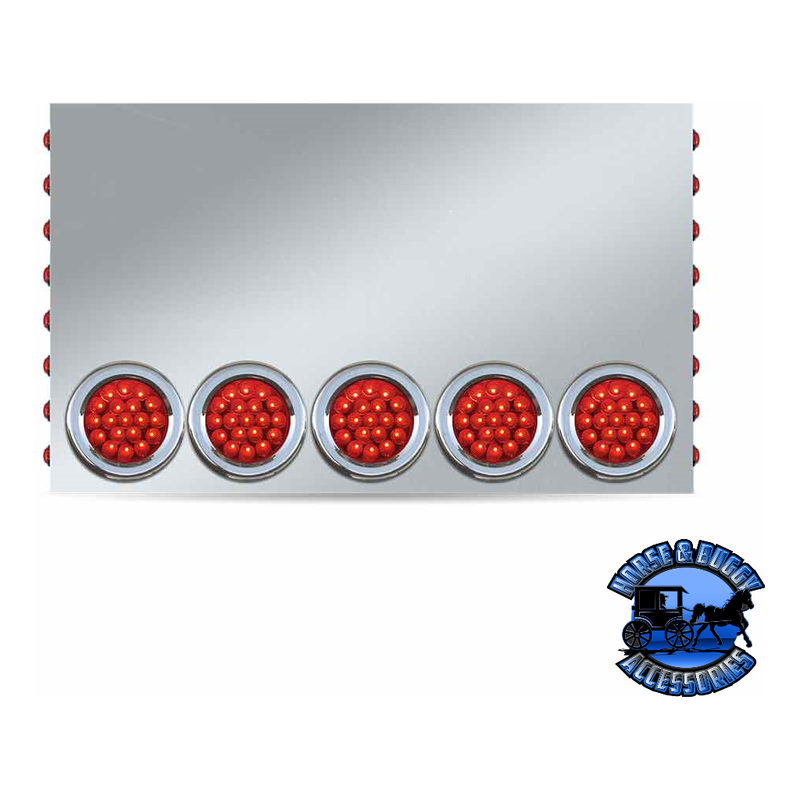

SKU: TU-9023L
| Product Description | 20" Drop LED Rear Center Panel with 4" & 3/4" LEDs – S, Red Lens, T & T & Marker |
|---|---|
| Style | LED Rear Center Panel |
| Size | 20" Drop |
| Sold | As a Kit |
| Material | 304 Stainless Steel |
| LED Compliance | DOT |
| Diodes | TLED-419R: 19 Diodes, TLED-B1R: 1 Diode |
| Light Functions | Marker, Stop / Turn / Tail |
| Lens Color | Red Lens |
| LED Color | Red |
| Operating Voltage | 12 Volts |
| Current Draw @ 12.9 Volts | TLED-419R: 120 mA, TLED-B1R: 35 mA |
| Lens Material | Polycarbonate |
| Waterproof Rating | IP67 for LEDs |
| Warranty | 1 Year Warranty on Stainless, 3 Years on LEDs |

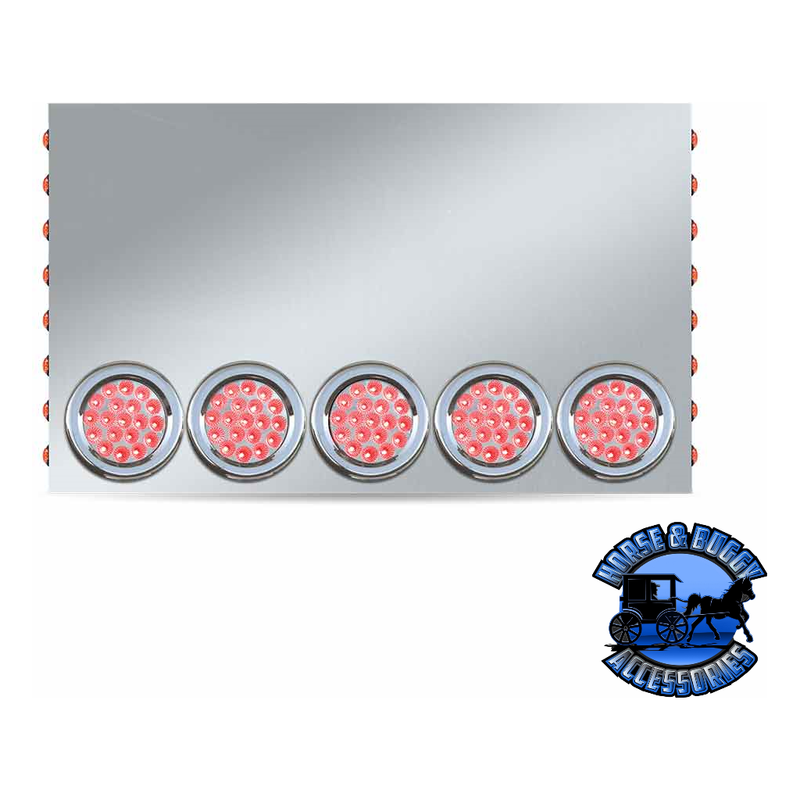

SKU: TU-9023LC
| Product Description | 20" Drop LED Rear Center Panel with 4" & 3/4" LEDs – S, Clear Lens, T & T & Marker |
|---|---|
| Style | LED Rear Center Panel |
| Size | 20" Drop |
| Sold | As a Kit |
| Material | 304 Stainless Steel |
| LED Compliance | DOT |
| Diodes | TLED-419CR: 19 Diodes, TLED-B1CR: 1 Diode |
| Light Functions | Marker, Stop / Turn / Tail |
| Lens Color | Clear Lens |
| LED Color | Red |
| Operating Voltage | 12 Volts |
| Current Draw @ 12.9 Volts | TLED-419CR: 120 mA, TLED-B1CR: 35 mA |
| Lens Material | Polycarbonate |
| Waterproof Rating | IP67 for LEDs |
| Warranty | 1 Year Warranty on Stainless, 3 Years on LEDs |
SKU: TU-9023L2
| Product Description | 20" Drop Dual LED Rear Center Panel with 4" & 3/4" LEDs – S, Clear Lens, T & T / Marker to White Back Up / Auxiliary |
|---|---|
| Style | LED Rear Center Panel |
| Size | 20" Drop |
| Sold | As a Kit |
| Material | 304 Stainless Steel |
| LED Compliance | DOT to Aux |
| Diodes | TLED-419CR: 19 Diodes, TLED-4X40: 19 Diodes, TLED-BX1RW: 1 Diode |
| Light Functions | Marker to White Auxiliary, Stop / Turn / Tail to White Back Up Auxiliary |
| Lens Color | Clear Lens |
| LED Color | Red/White |
| Operating Voltage | 12 Volts |
| Current Draw @ 12.9 Volts | TLED-419CR: 120 mA, TLED-4X40: 220-270 mA, TLED-BX1RW: 30 mA |
| Lens Material | Polycarbonate |
| Waterproof Rating | IP67 for LEDs |
| Warranty | 1 Year Warranty on Stainless, 3 Years on LEDs |
SKU: TU-9023L3
| Product Description | 20" Drop Dual LED Rear Center Panel with 4" & 3/4" LEDs – S, Clear Lens, T & T / Marker to Blue Auxiliary |
|---|---|
| Style | LED Rear Center Panel |
| Size | 20" Drop |
| Sold | As a Kit |
| Material | 304 Stainless Steel |
| LED Compliance | DOT to Aux |
| Diodes | TLED-419CR: 19 Diodes, TLED-4XRB: 19 Diodes, TLED-BX1RB: 1 Diode |
| Light Functions | Marker to Blue Auxiliary, Stop / Turn / Tail to Blue Auxiliary |
| Lens Color | Clear Lens |
| LED Color | Red/Blue |
| Operating Voltage | 12 Volts |
| Current Draw @ 12.9 Volts | TLED-419CR: 120 mA, TLED-4XRB: 220-270 mA, TLED-BX1RB: 30 mA |
| Lens Material | Polycarbonate |
| Waterproof Rating | IP67 for LEDs |
| Warranty | 1 Year Warranty on Stainless, 3 Years on LEDs |

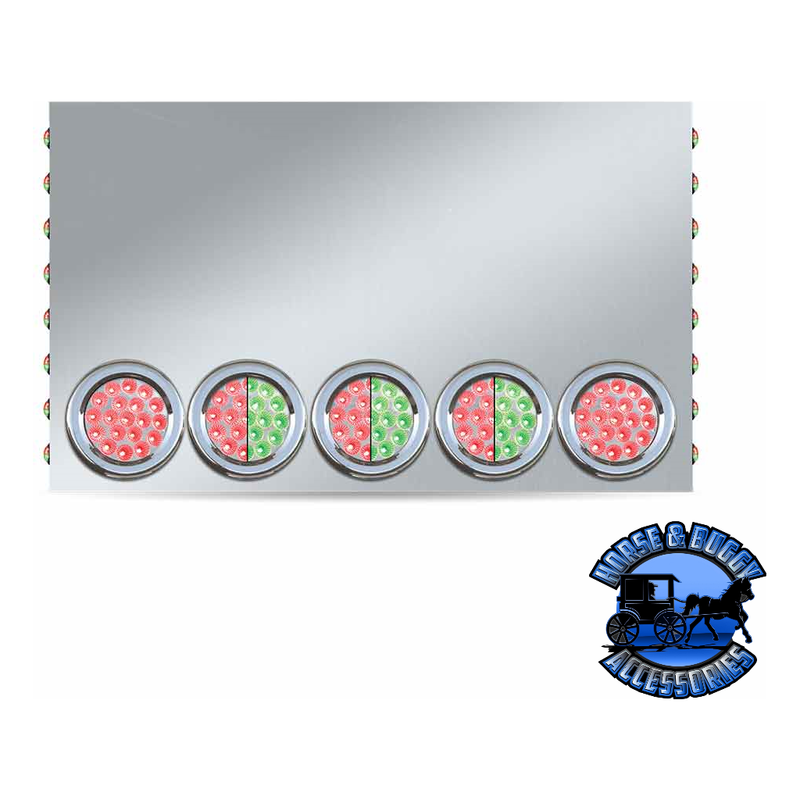

SKU: TU-9023L4
| Product Description | 20" Drop Dual LED Rear Center Panel with 4" & 3/4" LEDs – S, Clear Lens, T & T / Marker to Green Auxiliary |
|---|---|
| Style | LED Rear Center Panel |
| Size | 20" Drop |
| Sold | As a Kit |
| Material | 304 Stainless Steel |
| LED Compliance | DOT to Aux |
| Diodes | TLED-419CR: 19 Diodes, TLED-4XRG: 19 Diodes, TLED-BX1RG: 1 Diode |
| Light Functions | Marker to Blue Auxiliary, Stop / Turn / Tail to Blue Auxiliary |
| Lens Color | Clear Lens |
| LED Color | Red/Green |
| Operating Voltage | 12 Volts |
| Current Draw @ 12.9 Volts | TLED-419CR: 120 mA, TLED-4XRG: 247-270 mA, TLED-BX1RG: 30 mA |
| Lens Material | Polycarbonate |
| Waterproof Rating | IP67 for LEDs |
| Warranty | 1 Year Warranty on Stainless, 3 Years on LEDs |
SKU: TU-9023L6
| Product Description | 20" Drop Dual LED Rear Center Panel with 4" & 3/4" LEDs – S, Clear Lens, T & T / Marker to Purple Auxiliary |
|---|---|
| Style | LED Rear Center Panel |
| Size | 20" Drop |
| Sold | As a Kit |
| Material | 304 Stainless Steel |
| LED Compliance | DOT to Aux |
| Diodes | TLED-419CR: 19 Diodes, TLED-4XRP: 19 Diodes, TLED-BX1RP: 1 Diode |
| Light Functions | Marker to Purple Auxiliary, Stop / Turn / Tail to Purple Auxiliary |
| Lens Color | Clear Lens |
| LED Color | Red/Purple |
| Operating Voltage | 12 Volts |
| Current Draw @ 12.9 Volts | TLED-419CR: 120 mA, TLED-4XRP: 220-270 mA, TLED-BX1RP: 30 mA |
| Lens Material | Polycarbonate |
| Waterproof Rating | IP67 for LEDs |
| Warranty | 1 Year Warranty on Stainless, 3 Years on LEDs |

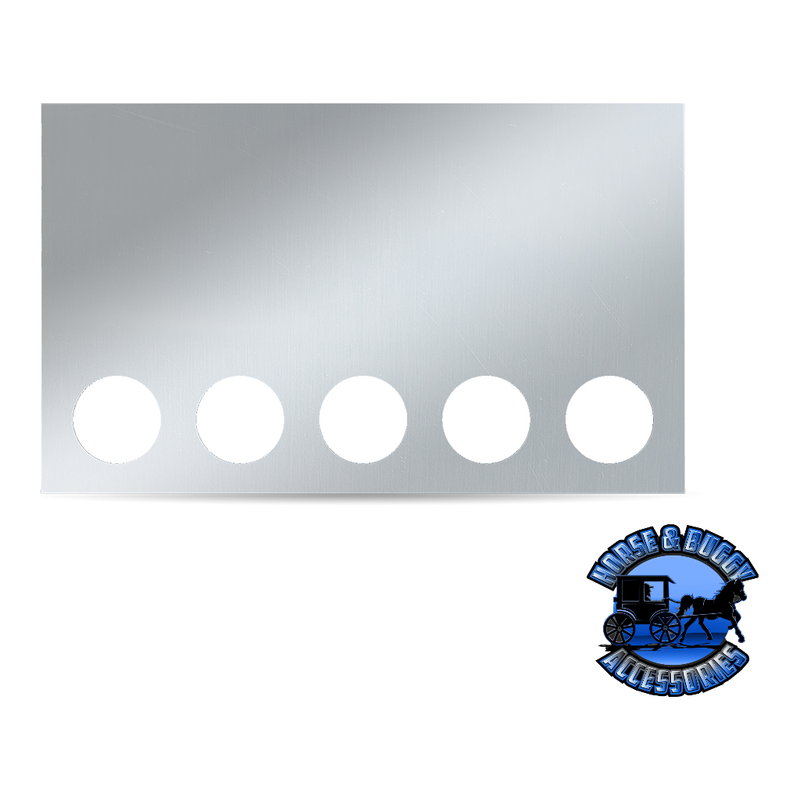

SKU: TU-9023
| Product Description | 20" Drop LED Rear Center Panel with 5 x 4" Holes & 16 x 3/4" Holes |
|---|---|
| Style | LED Rear Center Panel |
| Size | 20" Drop |
| Sold | Individually |
| Material | 304 Stainless Steel |
| Warranty | 1 Year Warranty |
