TLED-H119 7″ Heated LED Reflector Headlight with Glow Position LED Accent – Combination High & Low Beam | 2200 Lumens
SKU TLED-H119
Original price
£147.00 GBP
-
Original price
£147.00 GBP
Original price
£147.00 GBP
£147.00 GBP
-
£147.00 GBP
Current price
£147.00 GBP
Availability:
in stock
- Significantly Brighter than Halogen Headlights
- White Glow Position LED Accent

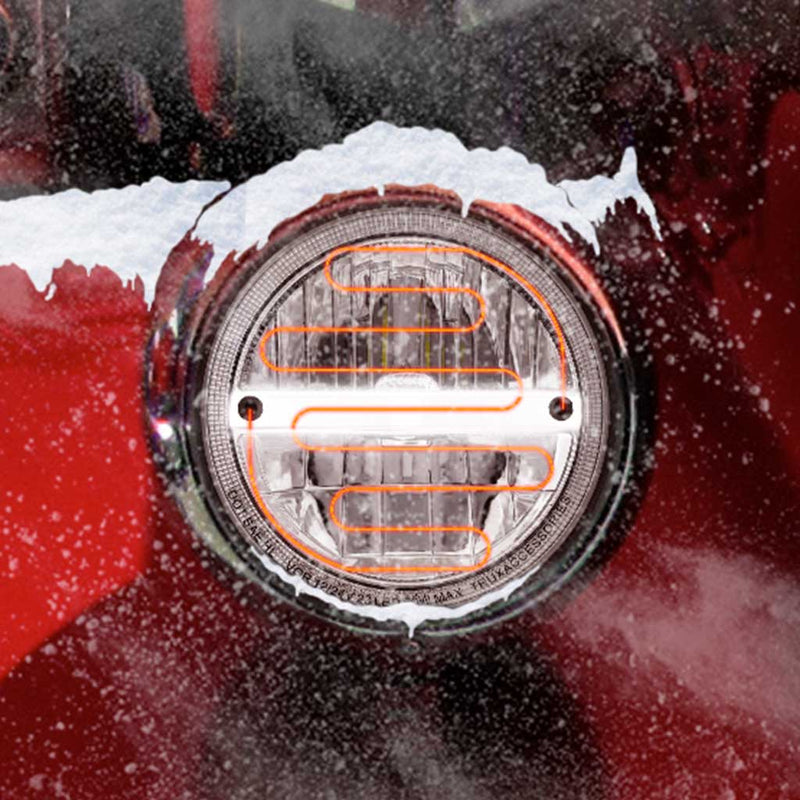

- Heated Lens Activates at 46.4° Fahrenheit / 8° Celsius

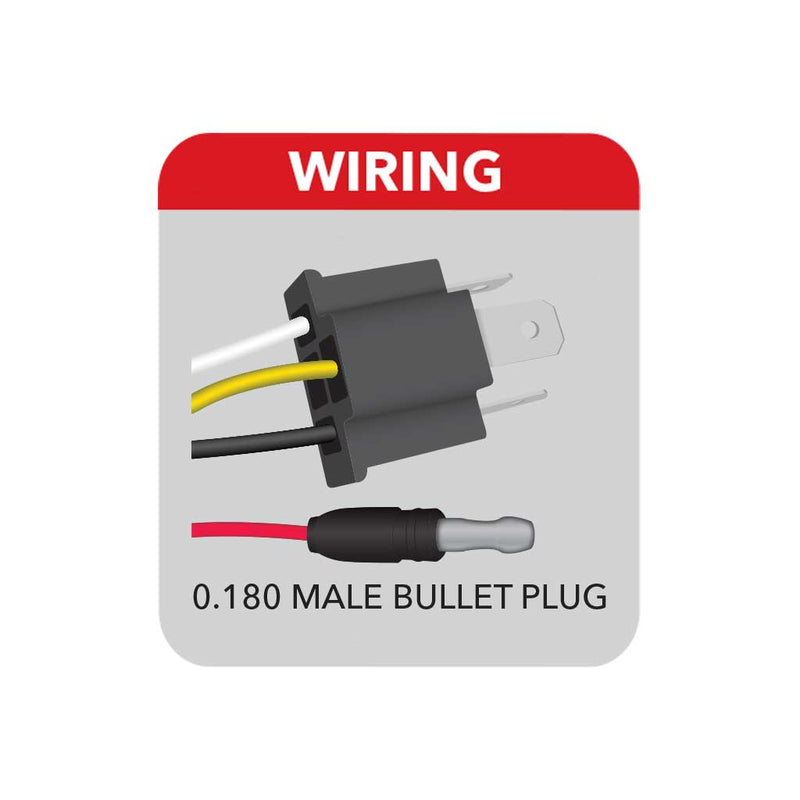

- Features a Universal H4 Connector
- Includes H4 Conversion Plug (TPIG-H1)
- 2 Year Warranty
-
Product Description 7" Heated LED Reflector Headlight with Glow Position LED Accent – Combination High & Low Beam
Style Round
Size 7"
Sold Individually
Compliance CMVSS-108, DOT/SAE, FMVSS-108
Bulb Type LED Reflector

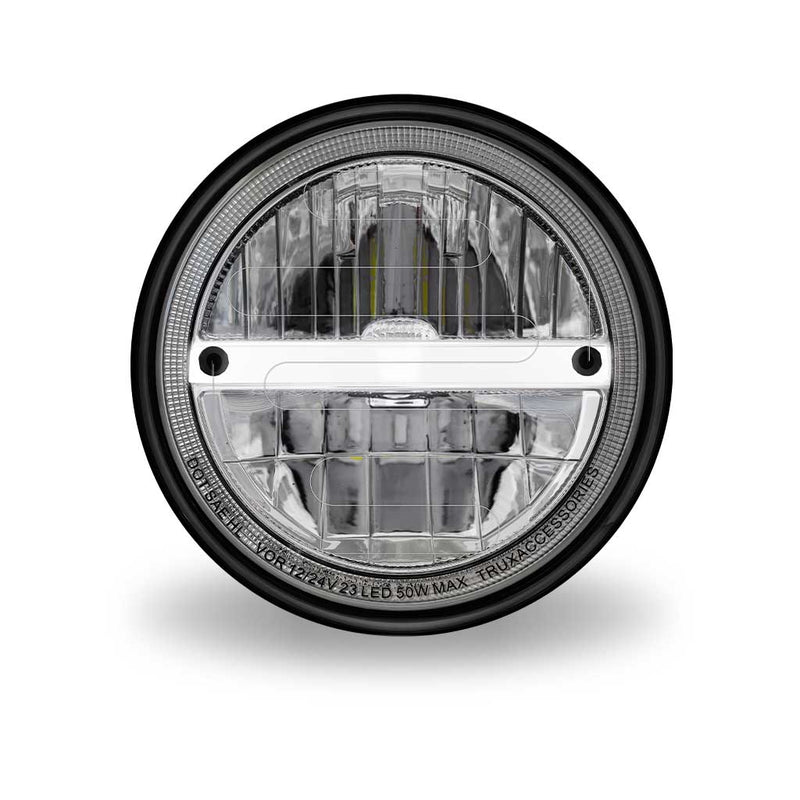

Function 1 Combination High & Low Beam
Function 2 Glow Position LED Accent

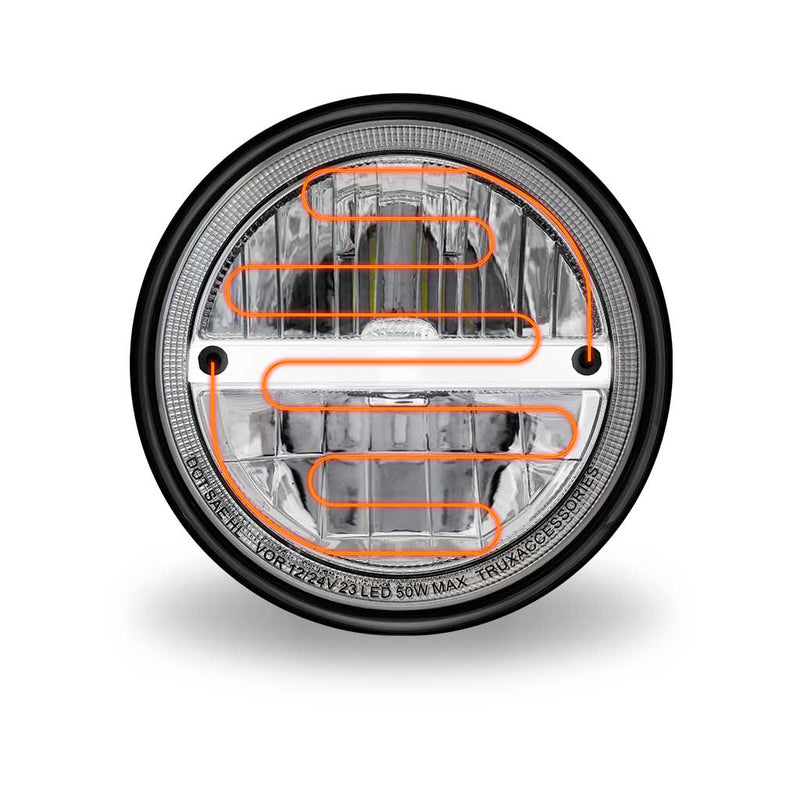

Function 3 Heated Lens
LED Power Heat Activation High: 33.3 Amps, Heat Activation Low: 25.6 Watts, High: 20.5 Watts, Low: 12.8 Watts
Raw Lumens High: 2200 Lumens, Low: 2200 Lumens
Effective Lumens High: 1600 Lumens, Low: 1000 Lumens
Operating Voltage 9-35 Volts (DRL Compatible)
Function 1 Amperage High: 1.6 Amps, Low: 0.9 Amps
Function 2 Amperage Auxiliary Strip: 0.25 Amps
Function 3 Amperage Heat Activation: 1 Amp
Diodes Auxiliary Strip: 24 Diodes, High: 2 Diodes, Low: 1 Diode
Interior Color Chrome
Lens Color Clear
Lens Material Polycarbonate
Color Temperature 5500-6500 Kelvin
Housing Material Aluminum Alloy
Waterproof Rating IP67 Rating
What's Included Headlight Conversion Plug
Warranty 2 Year Warranty
Current Draw @ 12.8 Volts Heat Activation High: 2.6 Amps, Heat Activation Low: 2 Amps, High: 1.6 Amps, Low: 1 Amp
Technical Specifications
| Product Description | 7" Heated LED Reflector Headlight with Glow Position LED Accent – Combination High & Low Beam |
|---|---|
| Style | Round |
| Size | 7" |
| Sold | Individually |
| Compliance | CMVSS-108, DOT/SAE, FMVSS-108 |
| Bulb Type | LED Reflector |
| Function 1 | Combination High & Low Beam |
| Function 2 | Glow Position LED Accent |
| Function 3 | Heated Lens |
| LED Power | Heat Activation High: 33.3 Amps, Heat Activation Low: 25.6 Watts, High: 20.5 Watts, Low: 12.8 Watts |
| Raw Lumens | High: 2200 Lumens, Low: 2200 Lumens |
| Effective Lumens | High: 1600 Lumens, Low: 1000 Lumens |
| Operating Voltage | 9-35 Volts (DRL Compatible) |
| Function 1 Amperage | High: 1.6 Amps, Low: 0.9 Amps |
| Function 2 Amperage | Auxiliary Strip: 0.25 Amps |
| Function 3 Amperage | Heat Activation: 1 Amp |
| Diodes | Auxiliary Strip: 24 Diodes, High: 2 Diodes, Low: 1 Diode |
| Interior Color | Chrome |
| Lens Color | Clear |
| Lens Material | Polycarbonate |
| Color Temperature | 5500-6500 Kelvin |
| Housing Material | Aluminum Alloy |
| Waterproof Rating | IP67 Rating |
| What's Included | Headlight Conversion Plug |
| Warranty | 2 Year Warranty |
| Current Draw @ 12.8 Volts | Heat Activation High: 2.6 Amps, Heat Activation Low: 2 Amps, High: 1.6 Amps, Low: 1 Amp |
