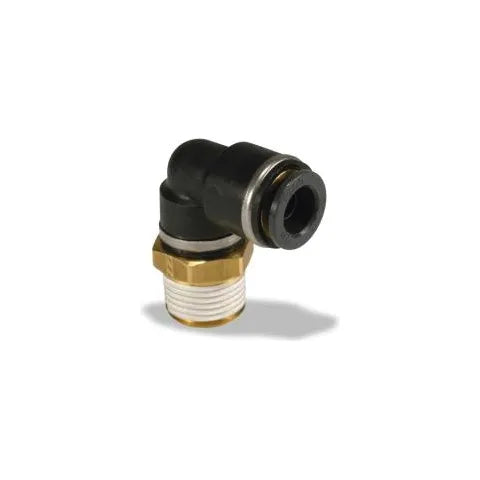

Light Gray Push-Lock Air Brake Fitting, 90° Male Swivel Elbow #016284 AIR BRAKE FITTING

Push-Lock Air Brake Fitting, 90° Male Swivel Elbow #016284

SKU V-016284
Rs. 1,400.00 - Rs. 1,400.00
Rs. 1,400.00
Rs. 1,400.00 - Rs. 1,400.00
Rs. 1,400.00

V-016284
  • Designed for use with SAE J844 nylon tubing.
  • DOT 49 CFR 571.106 compliant.
  • High strength composite fittings offer weight savings over all brass style fittings—currently being used by many OE vehicle manufacturers.
  • Fittings meet performance requirements as stated in SAE J1131.
  • Operating temperatures from -45° F to +140° F.
  • Maximum operating pressure 145 psi.
  • Elbows and male branch fittings have built-in swivel feature for easy positioning.
  • Engineered tube retention system and seal design offers superior holding and side load retention capabilities.
  • Positive release bushing for easy insertion and removal of tubing.
  • Thread sealant applied to all male pipe threads to reduce installation time and expense.
  • Composite body with brass pipe fitting end.
